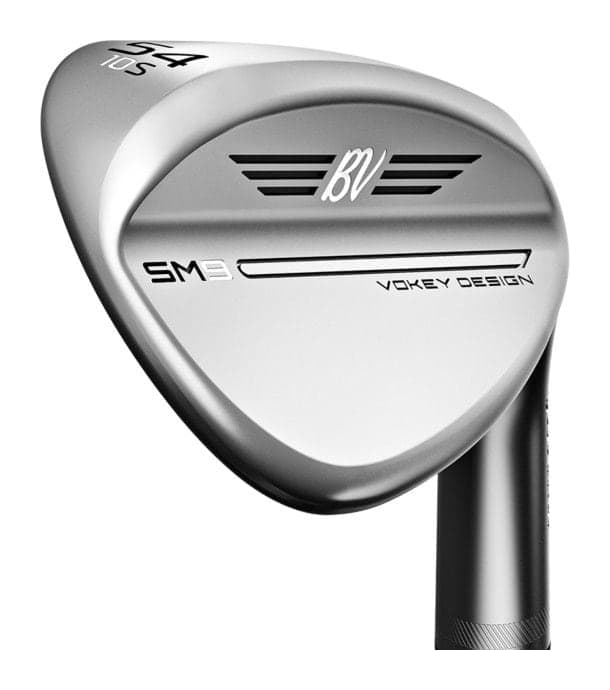

Titleist Vokey SM9
Factory specifications
| Loft | Bounce | Grind | Lie | Length | SW | LH |
|---|---|---|---|---|---|---|
| 46° | 10° | F | 64° | 35.75" | D3 | Yes |
| 48° | 10° | F | 64° | 35.75" | D3 | Yes |
| 50° | 8° | F | 64° | 35.5" | D3 | Yes |
| 50° | 12° | F | 64° | 35.5" | D3 | Yes |
| 52° | 8° | F | 64° | 35.5" | D3 | Yes |
| 52° | 12° | F | 64° | 35.5" | D3 | Yes |
| 54° | 10° | S | 64° | 35.25" | D5 | Yes |
| 54° | 12° | D | 64° | 35.25" | D5 | Yes |
| 54° | 14° | F | 64° | 35.25" | D5 | Yes |
| 56° | 8° | M | 64° | 35.25" | D5 | Yes |
| 56° | 10° | S | 64° | 35.25" | D5 | Yes |
| 56° | 12° | D | 64° | 35.25" | D5 | Yes |
| 56° | 14° | F | 64° | 35.25" | D5 | Yes |
| 58° | 4° | T | 64° | 35" | D5 | Yes |
| 58° | 8° | M | 64° | 35" | D5 | Yes |
| 58° | 10° | S | 64° | 35" | D5 | Yes |
| 58° | 12° | D | 64° | 35" | D5 | Yes |
| 58° | 14° | K | 64° | 35" | D5 | Yes |
| 60° | 4° | L | 64° | 35" | D5 | Yes |
| 60° | 4° | T | 64° | 35" | D5 | Yes |
| 60° | 8° | M | 64° | 35" | D5 | Yes |
| 60° | 10° | S | 64° | 35" | D5 | Yes |
| 60° | 12° | D | 64° | 35" | D5 | Yes |
| 60° | 14° | K | 64° | 35" | D5 | Yes |
| 62° | 8° | M | 64° | 35" | D5 | Yes |
- Grinds
- F Full sole, all-purpose grind for full shots and square-faced shots; the only grind in the 44-52 degree lofts and the high-bounce (14) option at 54/56.
- S Full sole narrowed by a trailing-edge grind for a faster feel through the turf; mid bounce (10), best for neutral-to-firm conditions and square-faced players who control loft with their hands.
- M Crescent-shaped sole with heel, toe and trailing-edge relief; mid-to-low bounce (8), Bob Vokey's favorite for players who rotate the face open and shut with a shallow/sweeping attack.
- D Same crescent shape as the M with higher effective bounce (12) and a beveled leading edge; the "player's high bounce" wedge for steep attack angles and soft turf.
- K Widest, highest-bounce (14) sole with enhanced camber; the most forgiving bunker club, suited to soft conditions and steep swings.
- L Narrow crescent sole with the lowest bounce (4) and heavy heel/toe/trailing-edge relief; maximum greenside versatility for firm conditions and skilled players.
- T Narrowest sole in the line, low bounce (4) with heel, toe and trailing-edge relief; tour-favored low-bounce lob wedge for firm turf and tight lies.
- Finishes
- Tour Chrome, Brushed Steel, Jet Black, Raw (custom order / WedgeWorks only)
- Stock shaft & grip
- True Temper Dynamic Gold S200 · Golf Pride Tour Velvet 360 White
- Notes
- Announced Jan 24, 2022; pre-order Feb 17; retail Mar 11, 2022; US MAP $179. Launched with 23 options in six grinds (F, S, M, D, K, L); 58.04T and 60.04T were added to the standard line (Tour Chrome, Brushed Steel, Jet Black) on Mar 10, 2023, bringing the total to 25 and seven grinds. Matrix cross-checked: MyGolfSpy launch table (23, with length and swing weight), golfbox grind list (23), 2ndswing tables (25 incl. T grinds, with lie, length, RH/LH). Only disagreement: MyGolfSpy lists the 46.10F at 35.72 in., an evident typo for 35.75 in. (2ndswing and all other generations give 35.75). Swing weights D3 (46-52) / D5 (54-62) per MyGolfSpy and 2ndswing. 2ndswing lists all 25 options RH/LH. Replaced by SM10 at retail Mar 8, 2024.
Bounce by loft
