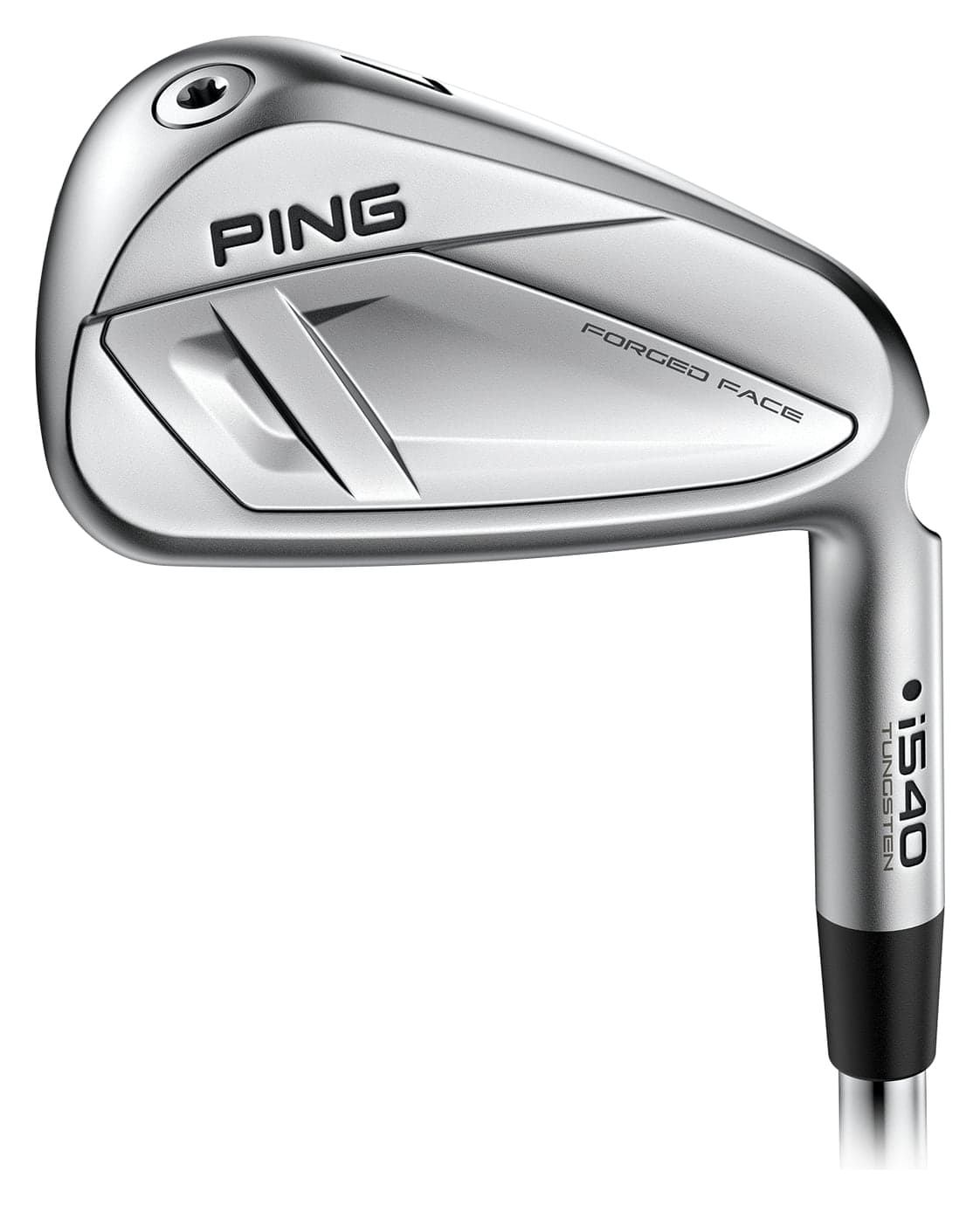

Ping i540Current
Factory specifications
| Club | Loft | Lie | Length | Offset | Bounce | SW |
|---|---|---|---|---|---|---|
| 4 | 19° | 60.5° | 39.25" | 0.19" | 6° | D1 |
| 5 | 22° | 61° | 38.5" | 0.16" | 7° | D1 |
| 6 | 25.5° | 61.5° | 37.75" | 0.13" | 8° | D1 |
| 7 | 29° | 62° | 37" | 0.1" | 9° | D1 |
| 8 | 33° | 62.8° | 36.5" | 0.08" | 10.5° | D1 |
| 9 | 37° | 63.5° | 36" | 0.06" | 12° | D1.5 |
| PW | 42° | 64.1° | 35.5" | 0.04" | 13° | D2 |
| UW | 47° | 64.1° | 35.5" | 0.03" | 13° | D2 |
- Build
- forged hollow body with a maraging steel face, hollow 17-4 stainless body with a forged variable-thickness maraging steel face and tungsten sole weighting
- Stock shafts
- True Temper Dynamic Gold Mid 100 (steel · 105g · flexes: R, S), Ping ALTA CB Blue (graphite · 65-82g)
- Replaced
- Ping i530
- Source
- Maker’s standard RH men’s steel build, via loftchart.com
Loft progression
Related sheets
Have this set?
Bring it by and we’ll check it against this sheet on the loft-and-lie machine, or get a trade-in offer on the spot. Numbers here are the maker’s standard right-hand, men’s steel-shaft build.
